CNCTOPBAOS DC24V Reciprocating Linear Actuator Stroke 2-8CM 3 Inch,Adjustable Telescopic Rocker Arm Mechanism Gear Motor Speed Regulation Adapter 120RPM 0.78"-3.14"
$42.50
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by dignityreturns.org
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$42.50
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by dignityreturns.org
Free 30-day returns Details
Product details
| Management number | 221226964 | Release Date | 2026/05/03 | List Price | $17.00 | Model Number | 221226964 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Reciprocating Linear Actuator: The reciprocating mechanism includes a geared motor,an adjustable speed power supply,and a reciprocating mechanism.The device is already installed,plug and play.Input voltage: AC100-240V,50Hz/60Hz; Working voltage: DC24V

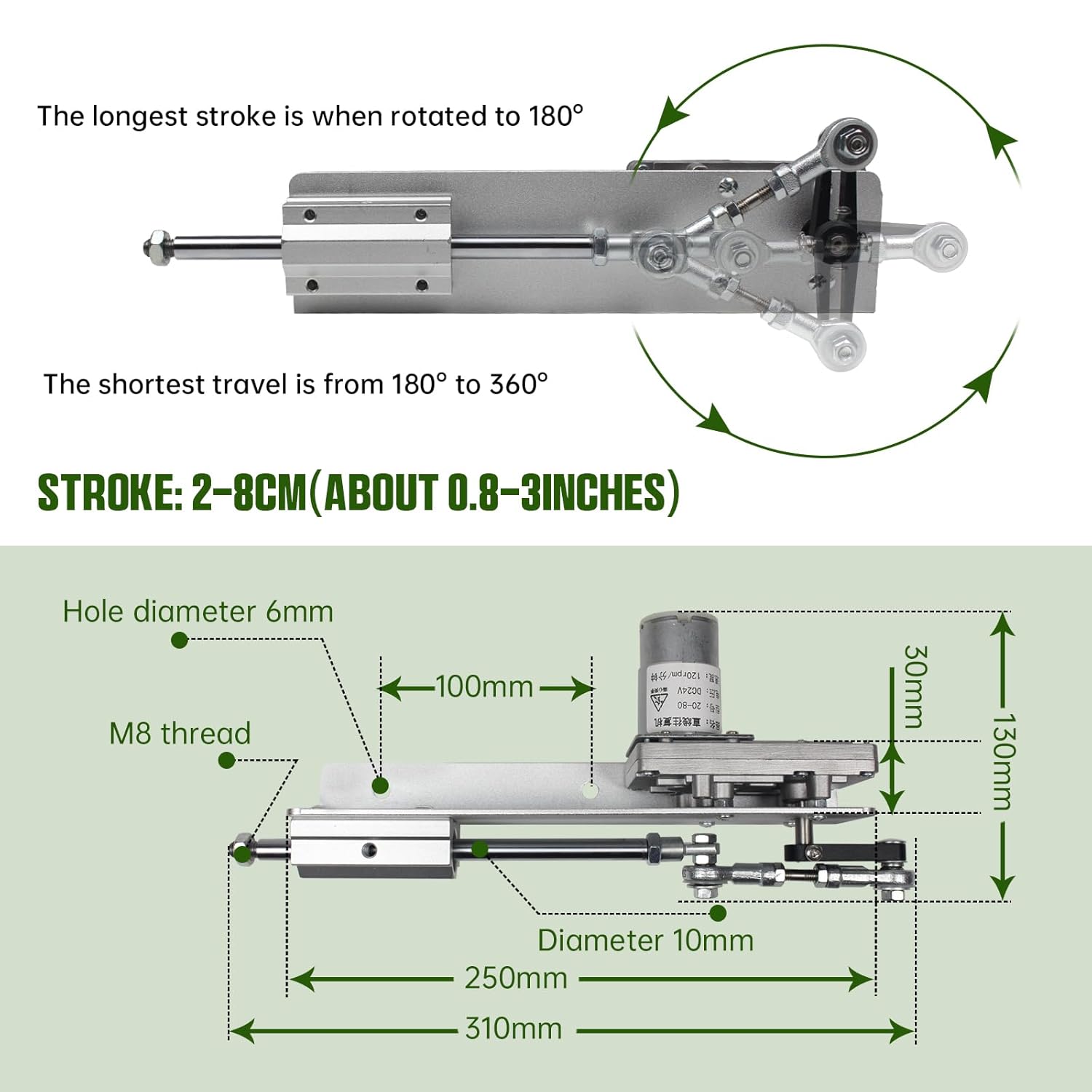

- Infinitely adjustment of stroke: Working voltage: DC 24V; Stroke range: 2-8cm/0.8"-3" and within this range,the telescopic stroke can be infinitely adjusted
- Speed and Thrust: Max speed: 120rpm; This means that at 24V voltage,the fastest stretching speed can be 120 times per minute; Thrust: 5-25kg/11lb-55lb;The push-pull force is mainly powered by the motor.The smaller the stroke,the greater the thrust
- High quality materials: Aluminum alloy material,compact structure design;Chromium plated telescopic tube with high stiffness, high hardness, and good bending resistance, equipped with high wear-resistant bearings, durable, high-strength and large torque range swing arm, high tensile strength, wide adjustable range of telescopic stroke, strong motor horsepower, providing stability
- DC gear motor: 24VDC,adjustable speed of up to 120 revolutions per minute,maximum torque of 25kg/cm,hole spacing of 50x50mm,shaft diameter of 8mm,weight of 0.5kg/1.1lb, rated current of 0.6A,length and width of 60x102mm/2.36 "x4"; Adopting high-quality pure copper wire motor and integrated heat treatment gearbox, with low heat generation, sufficient power, multi-level reduction, metal gears, greater strength, and longer lifespan
| Item Weight | 3.14 pounds |
|---|---|
| Manufacturer | CNCTOPBAOS |
| Package Dimensions | 12.76 x 8.15 x 4.02 inches |
