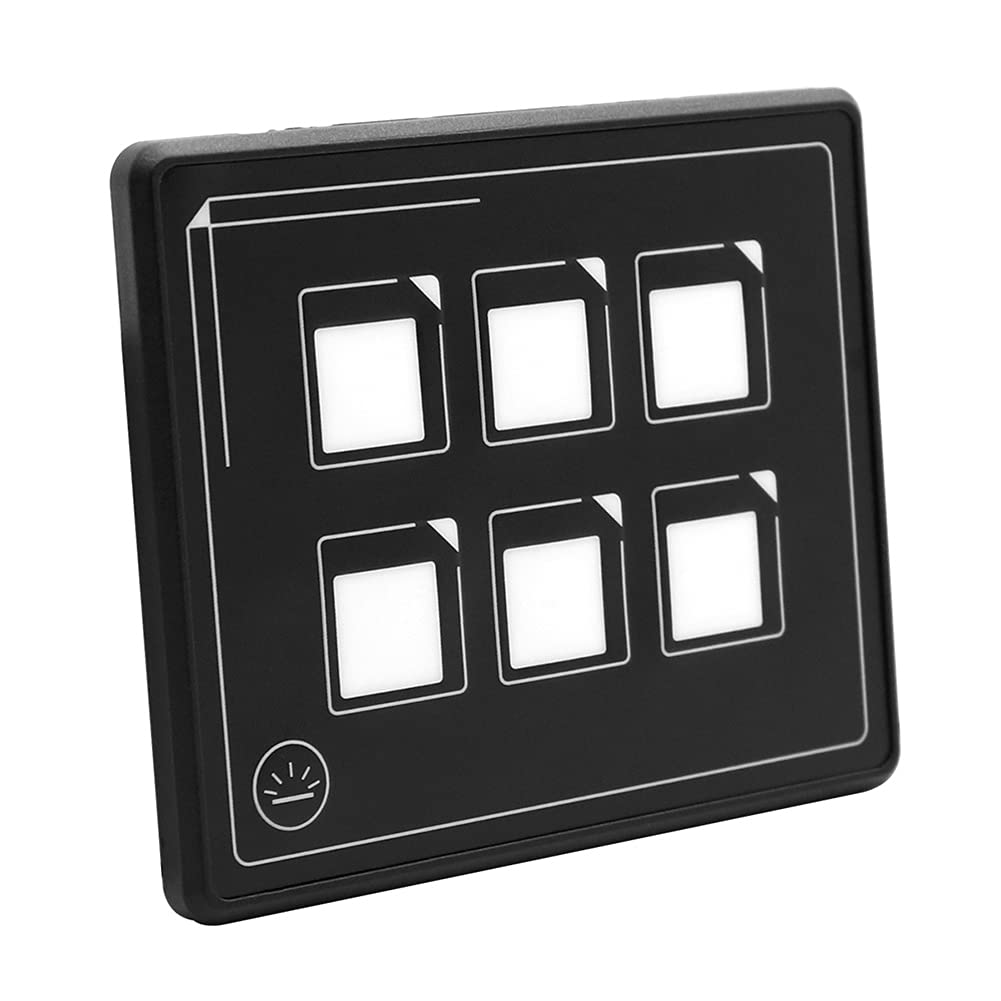

Yinhing 12 24V Car LED Touch Membrane Control Switch Panel Compact USB Remote Control with IP66 Programmable Momentary

Specifications: Item Type: Panel switch Condition: Material: ABS Color: As pictures shown Panel Size: Approx..1x0.8x7.5cm/3.6x0.3x3in Control Box Size: Approx.16x9.5x3.2cm/6.3x3.7x1.3in Voltage: 12-24V Current: 10A per branch circuit Panel: PET film Circuit : Built-in Resettable (PPTC) Switching Rated: 10A per branch Panel Rating: Maximum cumulative amplifier 35A Rated Voltage: DC 12-24V Film Panel: IP66 Power Terminal: M4 stud size terminal Loading Terminal: 250 fast terminal (male) Installation Instruction: . Place the provided template on the desired panel position and the hole accordingly. 2. Connect the USB plug to the socket on the back of the panel. 3. Firmly mount the panel on the dashboard and use the self-stick adhesive on the back of the dashboard. 4. Install the control box correctly with the screws provided. Plug the other end of the USB cable into the control box. Insert the cable into the strain relief hook on the box. 5. Press the DC positive wire (+) with the included round terminal. The wires are passed through the included insulator and connected to the screw terminals. Cover the terminal with an insulator. Press the DC negative line (-) with an insulated 0.250'' female terminal and insert the negative terminal on the control box. 6. Connect the load terminal to the desired device. The number at the top of the load terminal corresponds to the number on the panel of the membrane 2 3 shown on the left. 7. (Instantaneous settings) Set a specific to be momentary (pressed) while pressing the and backlight for more than 5 seconds until the flashes. buttons can be set to press shortly. To undo this action (change the to on - off), simply repeat the process again on the same . Package List: x Host x Touch Panel x Data Line 2 x Terminal x Strap 4 x Screw x Protective Rubber Sleeve Voltage Parameter How to Use Package List

• [Ultra-Compact Design] - Experience the future of control with our ultra-small panel switch, which is 60% smaller than traditional panels. This compact design makes installation a breeze, eliminating the need for extensive modifications. With a minimal drilling requirement of only 13 x 8.5mm, anyone can set it up quickly, allowing for a hassle- enhancement to your vehicle's electronics. Say goodbye to bulky panels and embrace the , modern aesthetic of our design that fits seamlessly into any
• [Flexible Connectivity] - Enjoy unparalleled versatility with a miniature USB cable that allows end users to customize their connection easily. You can effortlessly replace any desired length of cable, thus catering to your installation preferences without compromising reliability. This flexible wiring solution permits control of the relay box even when it's installed a full meter away from the touch panel, making it ideal for maximized convenience and functionality within your vehicle.
• [Robust ] - Our panel is built to perform in various conditions, featuring an IP66 strong rating. This means you won’t have to worry about damage affecting its performance. Whether it's rain, splashes, or washing your vehicle, our panel switch is designed to withstand these challenges, providing you with a practical and dependable solution that excels even in adverse weather conditions.
• [ Features] - Your peace of mind is our priority. Equipped with a self-reset that indicates each branch of LED / 10A, this panel enhances during . This feature ensures that any potential overcurrent situations are handled effectively, protecting your device and connected systems. Furthermore, our buttons can be programmed as momentary, ideal for applications such as speaker or wiper control. This of customization allows you to tailor the functionality to your exact needs, making our offering
• [User-Friendly Backlight Module] - Navigate your panel easily, even in poor lighting conditions, thanks to its thoughtfully designed backlight module. This feature ensures that you can operate your controls effortlessly at any time, enhancing the user experience. Coupled with an impressively low standby current — 90% lower than previous — this panel not only contributes to energy savings but also adds to the overall user-friendliness. Each can be customized, and we even provide a variety of
